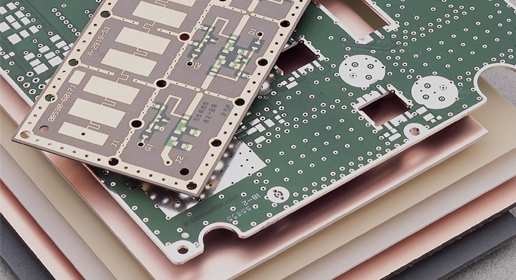

RT/duroid 5880LZ laminates contain a unique filler that results in a low density, lightweight material for high performance and weight sensitive applications.

Features

  • Dk of 2.00 +/- .04
  • Low dissipation factor ranging from .0021 to .0027 at 10GHz
  • Low Z-axis coefficient of thermal expansion at 40 ppm/°C
  • Low density of 1.4 gm/cm3

Benefits

  • Lightweight / low density
  • Uniform electrical properties over a wide frequency range
  • Resistant to all solvents and reagents, hot or cold, normally used in etching or plating

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

RT/duroid® 5880LZ
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) 2.00 +/- 0.04
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) 2.0
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) 0.0021
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) 20
Volume Resistivity Mohm (Typical) 1.74x107
Surface Resistivity Mohm (Typical) 2.08x106
Water Absorption D48/50% (Typical) 0.31
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.33
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 54
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 47
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 40
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) >4.0
Density gm/cm3 (Typical) 1.4
Flammability Rating UL94 V-0
Lead-Free Process Compatible Y
PIM dBc Typical
