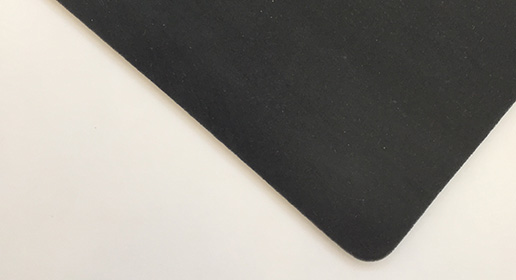

BISCO EC2265 Electrically Conductive Grade solid silicone is a carbon black filled silicone material that acts as a low amperage conductor and provides protection against electrostatic discharge.

Features

  • Solid, carbon filled
  • Available in thicknesses from 0.020 to 0.250 in.
  • Durometer of Shore A 65 ± 5
  • Electrical Conductivity at 5 ohm-cm

Benefits

  • Low amperage conductor
  • ESD shield

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the BISCO® Product Properties Guide.

EC-2265 EC-2130
Minimum Thickness (mm) 0.5 1.60
Maximum Thickness (mm) 6.35 3.20
Compression Set (%) 26 10
Tensile Strength (kPa) 5200 410
Elongation (%) 260 50
Volume Resisitivity (Ω-cm) 5 <1.0
