Features

  • Low PIM of -166 dBc at .030”
  • Dk range of 2.17 to 2.94
  • Dissipation factor range of .0009 to .0021 at 10 GHz
  • Uniform mechanical properties
  • Very smooth copper foil with Rq = 0.5μm by non-contact interferometry method

Benefits

  • Enables successful high performance antenna designs
  • Maintains mechanical form during handling
  • Greater yield on larger panel sizes

Downloads

Description Language File Type File Size
Data Sheet

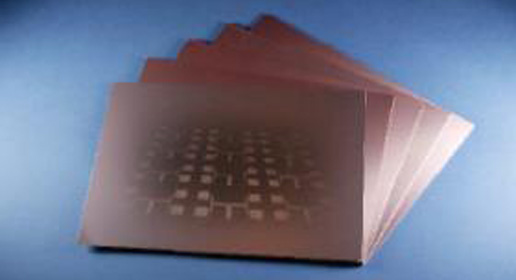

IM Series™ Antenna Grade Laminates Data Sheet English
327KB
