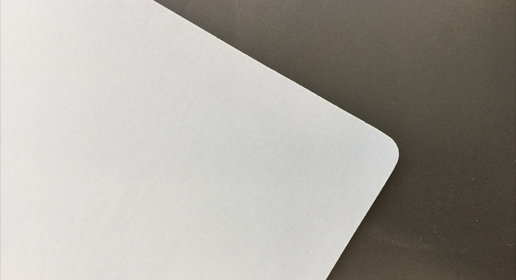

BISCO HT-840 Extra Firm Cellular Silicone is a very firm grade silicone foam that offers superior sealing capabilities. HT-840 silicone provides a higher tear and tensile strength than our lighter grade foams. HT-840 silicone is designed for use in enclosures requiring a more durable, high closure force gasket. This material is also ideal for use in press pads requiring greater conformability and even pressure distribution at high temperatures. HT-840 silicone is a great choice for sealing and protecting outdoor communication, lighting and electronic enclosures from small dust particles, wind-driven rain and fire.

Features

  • Compact cell structure
  • Available in thicknesses from 0.063 to 0.250 in.
  • Typical density of 28 PCF
  • CFD range of 16-26 PSI
  • Resistant to UV, ozone, extreme temperatures and flame

Benefits

  • Provides enhanced durability and sealing performance
  • Offers consistent performance in all environments
  • Reduces maintenance costs associated with gasket failures due to compression set and softening

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the BISCO® Product Properties Guide.

HT-820 HT-840
Minimum Thickness (mm) 0.79 1.59
Maximum Thickness (mm) 6.35 6.35
Density (kg/m3) 384 448
Compression Force Deflection (kPa) 106 142
Compression Set (%) <5 <5
Water Absorption (%) 0.5 0.5
UL94 V-0 (Pass/Fail) Pass Pass
UL94 HF-1 (Pass/Fail) Pass Pass
Min Operating Temp (°C) -55° -55°
Max Operating Temp (°C) 200° 200°
