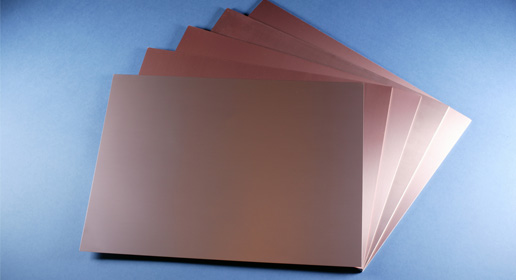

RO3003 laminates offer excellent stability of dielectric constant (Dk) over various temperatures and frequencies. This stability also includes the elimination of the step change in Dk that typically occurs near room temperature with PTFE glass materials. This is ideal for applications including automotive radar (77 GHz), advanced driver assistance systems (ADAS) and 5G wireless infrastructure (mmWave).

Features

  • Dk of 3.00 +/- .04
  • Dissipation factor of .0010 at 10 GHz
  • Low X, Y and Z axis CTE of 17, 16 and 25 ppm/°C, respectively

Benefits

  • Low Dk loss allows for use in applications up to 77 GHz
  • ISO 9001 certified
  • Economical laminate pricing

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the Laminate Properties Tool.

RO3003™ RO3006™ RO3010™ RO3035™
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Process) 3.00+/-0.047 6.15+/-0.15 10.20+/-0.30 3.50+/-0.05
Dielectric Constant, @10GHZ (2.5 GHz) Typical (Design) 3.1629 6.4 11.2 3.60
Dissipation Factor TAN @10 GHz (2.5 GHz) (Typical) 0.0010 0.002 0.0022 0.0015
Thermal Coefficient εr -50°C to 150°C ppm/°C (Typical) -3 -262 -395 -45
Volume Resistivity Mohm (Typical) 1x107 1x105 1x105 1x107
Surface Resistivity Mohm (Typical) 1x107 1x105 1x105 1x107
Water Absorption D48/50% (Typical) 0.04 0.02 0.05 0.04
Thermal Conductivity W/m/°K (Typical) 50°C ASTM D5470 0.50 0.79 0.95 0.50
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) X 17 17 13 17
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Y 16 17 11 17
Coefficient of Thermal Expansion -55° to 288°C ppm/°C (Typical) Z 25 24 16 24
Peel Strength 1 oz (35um) ED Foil lbs/in. (N/mm) (Typical) 12.7 (2.2) 7.1 (1.2) 9.4 (1.6) 10.2 (1.8)
Density gm/cm3 (Typical) 2.1 2.6 2.8 2.1
Flammability Rating UL94 V-0 V-0 V-0 V-0
Lead-Free Process Compatible Y Y Y Y
PIM dBc Typical
