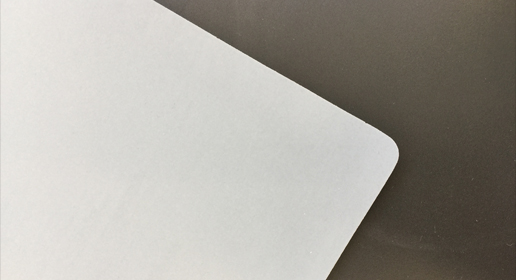

BISCO HT-820 Firm Cellular Silicone is a firm grade silicone foam that provides enhanced durability and sealing. HT-820 foam offers a higher tear and tensile strength than our lighter grade foams. This material is designed for use in enclosures requiring a more durable, high closure force gasket. HT-820 foam is ideal for sealing and protecting outdoor communication, lighting and electronic enclosures from small dust particles, wind-driven rain and fire.

Features

  • Compact cell structure offers enhanced sealing performance
  • Available in thicknesses from 0.031 to 0.250 in.
  • Typical density of 24 PCF
  • CFD range of 12-20 PSI
  • Resistant to UV, ozone, extreme temperatures and flame

Benefits

  • Excellent memory and low stress relaxation
  • Enhanced sealing performance
  • Offers consistent performance in all environments
  • Reduces maintenance costs associated with gasket failures due to compression set and softening

Please see below for a sampling of data for this material formulation. For detailed material information and to use advanced features such as filtering, visit the BISCO® Product Properties Guide.

HT-870 HT-800 HT-820
Minimum Thickness (mm) 1.60 0.79 0.79
Maximum Thickness (mm) 12.70 12.70 6.35
Density (kg/m3) 240 352 384
Compression Force Deflection (kPa) 28 67 106
Compression Set (%) <5 <5 <5
Water Absorption (%) <5 .05 0.5
UL94 V-0 (Pass/Fail) Pass Pass Pass
UL94 HF-1 (Pass/Fail) Pass Pass Pass
Min Operating Temp (°C) -55° -55° -55°
Max Operating Temp (°C) 200° 200° 200°
