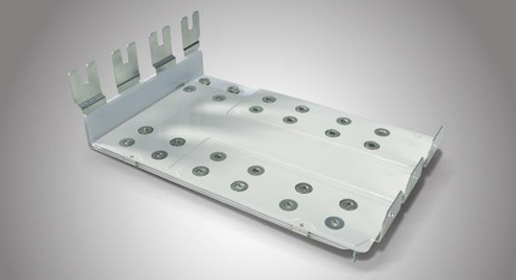

ROLINX Performance laminated busbars are optimized for very high working voltages and currents. ROLINX Performance provides the right balance of low inductivity and good partial discharge levels in a compact, easy-to-install design. This busbar is commonly used in propulsion systems, industrial converters, clean energy, EV/HEV, HVDC/Smart Grid, defense and aerospace, medical, process and automation and communication infrastructure applications.

Features

  • Engineered for demanding, high power environments
  • Carries voltage up to 12 kV DC
  • Power up to several MW
  • Temperature range of -50°C to +105°C
  • Relative humidity of 55°C/95% RH

Benefits

  • Designed for controlling partial discharge
  • Shaped to fit high voltage applications
  • Compact design
  • Reduced installation time
  • Built to last
